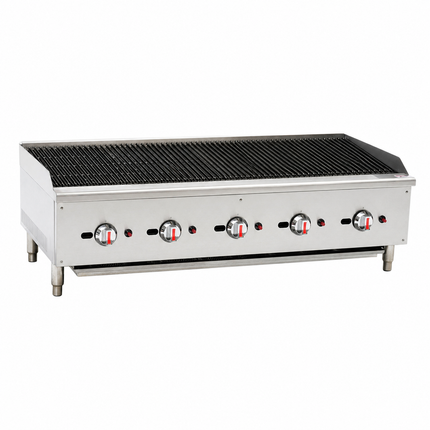

101074 - Gas Countertop Charbroiler - 5 Control, 1500mm Wide

Model Number: ECB-60SX

Please check the manual packet for the LPG/NG conversion jets and dataplate.

The Hamoki ECB-60SX Gas Countertop Charbroiler is a professional commercial chargrill that delivers exceptional grilling capacity with an expansive 1500mm cooking width, making it ideal for high-volume commercial kitchens and demanding catering environments.

Featuring five independently controlled burners, the charbroiler allows chefs to tailor heat intensity across the cooking surface, accommodating everything from delicate seafood and vegetables to steaks, burgers and other grilled specialities. Its heavy-duty stainless steel construction is built to withstand the demands of continuous commercial use, while the radiant heat system promotes effective heat distribution for authentic chargrilled finishes. Designed with productivity and practicality in mind, the ECB-60SX is a dependable solution for kitchens where cooking capacity, flexibility and performance are essential.

Key Features

• Extra-large 1500mm Footprint – The flagship model, offering an expansive grilling surface to accommodate larger quantities of food and meet the demands of high-volume commercial kitchens.
• Five Independent Cooking Zones – Allows chefs to adjust heat intensity across the grill, preparing different ingredients at varying temperatures simultaneously for greater precision and control.
• Heavy-Duty Construction – Stainless steel front with galvanised sides and back, designed for everyday commercial kitchen use.
• Flame Failure Protection – Integrated flame failure protection for safer operation.
• Natural Gas and LPG Compatibility – Supplied for natural gas operation with an LPG conversion jet kit included.
• No Electrical Connection Required – Operates entirely on gas without requiring an electrical supply.

Best Suited To

Ideal for high-volume restaurants, steakhouses, gastro pubs, hotels and large catering establishments where grilling plays a central role in food preparation. The ECB-60SX is particularly well suited to demanding foodservice environments, from intensive peak-time restaurant service to continuous all-day dining, banqueting, conferences and hotel room service.

Its expansive cooking surface and multiple independently controlled heat zones make it an excellent choice for kitchens preparing substantial quantities of grilled meats, seafood and vegetables while managing varied menus and simultaneous orders.

Specifications

Product Code: 101074

Model: ECB-60SX

Dimensions (W × D × H): 1504 × 640 × 390 mm

Weight: 112 kg

Power: 37.5 kW

Cooking Area: 1500 × 460 mm

BTU/hr: 150,000

Material: Stainless Steel

Gas Connection: 1 × 3/4" NPT Rear Gas Connection

Gas Type: Natural Gas (NG), LPG convertible

Jet Size: 2.2mm (NG Jet) 1.3mm (LPG Jet)

Important Information

Supplied for natural gas operation with an LPG conversion jet kit included. Installation and/or gas conversion must only be carried out by a suitably qualified Gas Safe registered engineer with the appropriate commercial catering appliance competency.

Downloads

EXPLODED DRAWING

OVERALL DRAWING
